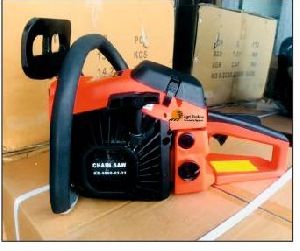

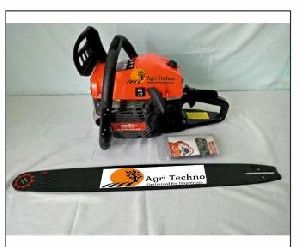

Chain Saw Machine

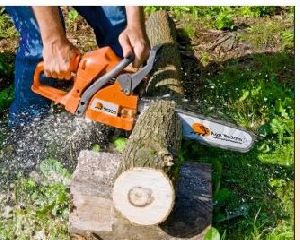

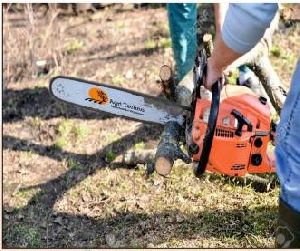

Hand Operated Gasoline Chainsaw is a hand operated device which is mainly utilized for cutting wooden blocks, bars, and trees. It is fitted with a high quality motor which assists in generating torque required for cutting. This saw works on principle of rotating a sharp chain which moves along guide bar. It is fitted with a small fuel tank which serves as a power source for motor. Chain Saw contains a crankshaft which turns gear assembly that is connected to sprocket on which chain is fitted.

Features:

• Perfect hand grip with throttle trigger
• Assures easy fuel filling
• Smooth cutting operation

• Engine type Single Cylinder, Air-cooling, 2-stroke
• Displacement -58CC
• Engine Power -2.8KW/8000RPM
• Maximum Engine Speed at idling -3000+200RPM
• Maximum Engine Speed with cutting attachment -12000+200RPM
• Fuel Consumption -450430g/kw.h
• Fuel Mixture-(Gasoline 25:Two cycle oil 1)
• Fuel tank capacity- 0.55L
• Oil tank capacity- 0.26L
• Guide Bar Size -22”
• Chain pitch Pitch -0.325"/gauge0.058
• Carburetor- diaphragm
• Ignition System -C.D.1
• N.W -5.3KG
• MEAS- 48*26*30cm

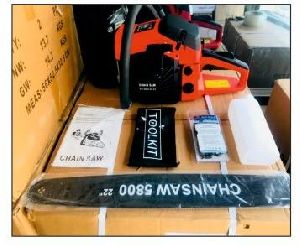

Chain Saw Packing List

Name Quantity Remark

• Chain Saw 1pc Guide Bar, Chain, Bar protector
• Tank 1pc
• Specifications 1copy
• Toolkit 1 pc

Contains: Chain file, carburetor adjusting screwdriver, spark plug wrench, 3 six angle wrench and 4 six angle wrench

Daily Maintenance of 5800 Chain Saw
Clean the surface of the machine.

• Clean the Air cleaner, use gas to clean the filter core.
• Check all the connections whether there is leakage of oil or air.
• Check all the screws of the engine cover to see if there are the loose or lost. If there is, please screw tightly or replace.
• Cover the machine with plastic film and store it in dry and well ventilated.
